M³ Headphone Amplifier

M³ is a 3 channel MOSFET output headphone amplifier inspired by the PPA, SDS Labs, and Hafler DH-200. M³ was designed by Team M³ in late 2004 as a community service project. You can read about it here:

Headwize M³ Build Discussion
Old Head-Fi M³ Build Discussion
Old Head-Fi M³ Project Announcement

M³ is pronounced em cubed. The 3 in M³ is HTML ³ (Unicode 00b3). Windows users type Alt 0179 or use Character Map. Type MMM or M3 if you are lazy. Rumor has it MMM once stood for Morsel's MOSFET Monster, but in fact it refers to the 3 MOSFET output channels. Mmm, yummy MOSFETs.

Team M³ is Morsel and AMB.
Thanks to PPL and Tangent for their bountiful wisdom and lore. NeilPeart and Raif helped us with listening tests.
For more detailed information on construction and board purchases, please see AMB's M³ Pages.

Schematic and Layout

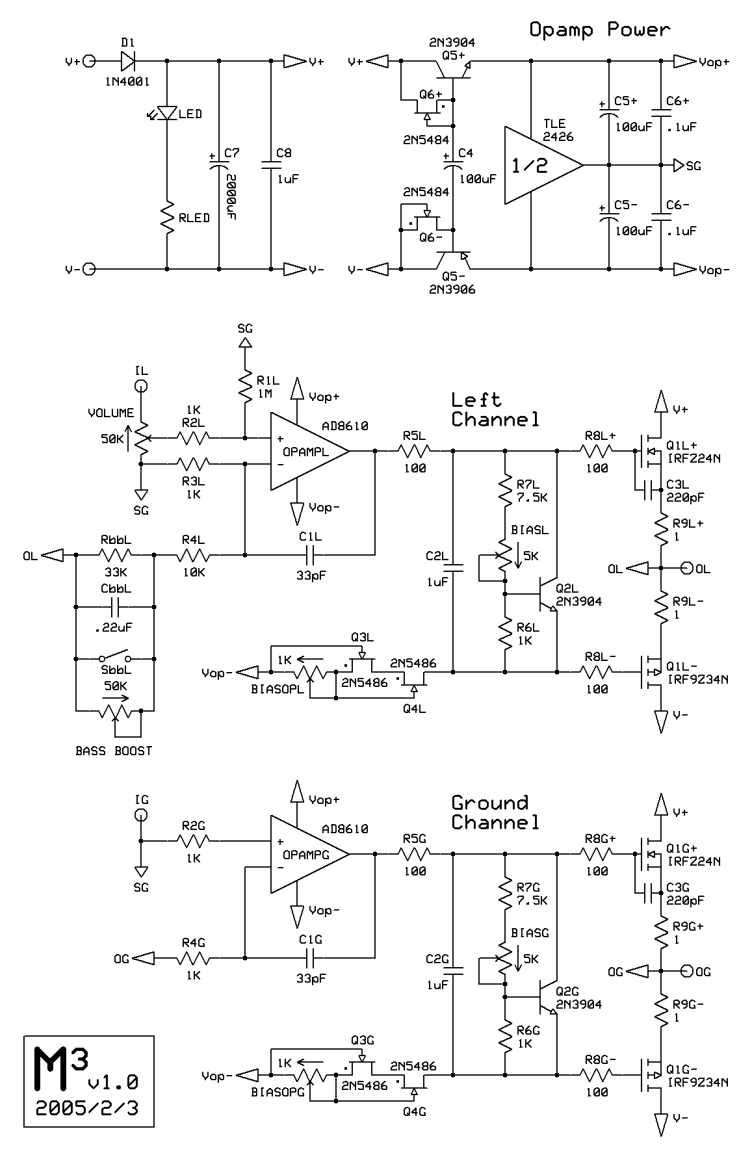

[M³ schematic]

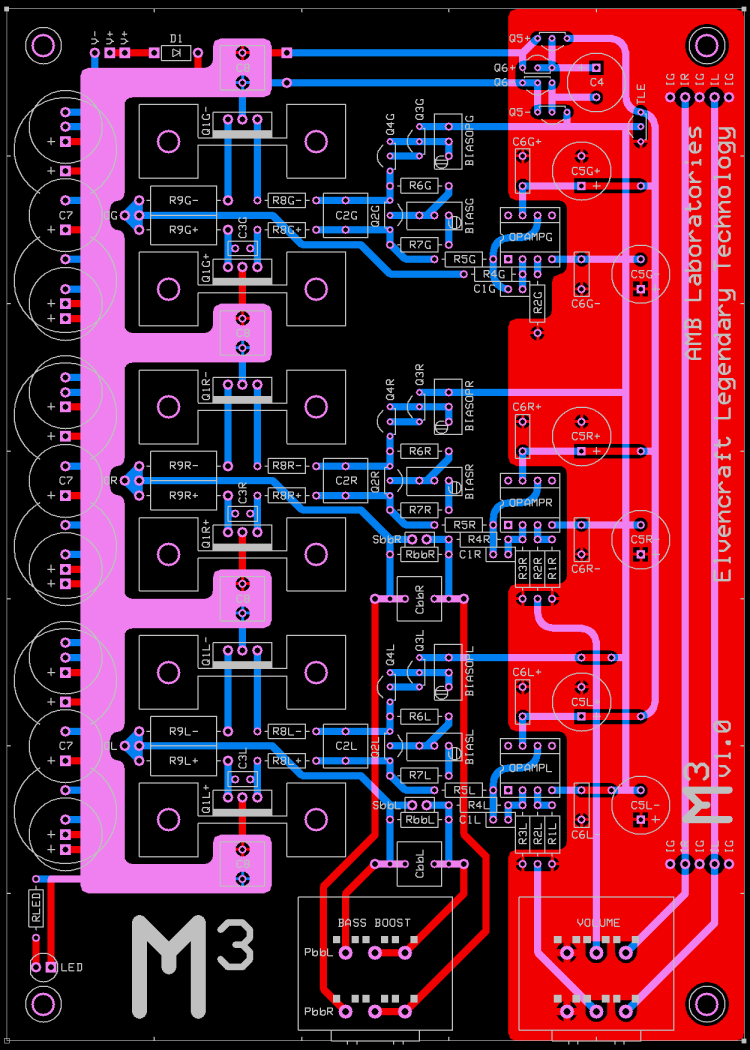

[M³ layout]


differential output topology
discrete MOSFET output stage
AC only, no compromises for battery compatibility
powerful enough to drive the AKG K1000 or small monitors
no input or output protection for maximum transparency
capacitance multiplier isolated power rails for the input stage
FET cascode current source for opamp biasing
VBE multiplier for MOSFET biasing
trimpots for easy bias adjustment
DIP single channel opamps (AD8610 or OPA627 recommended)
TLE2426 precision virtual ground reference
adjustable or switchable bass boost
gain of 11 (21dB)
board mounted 50kΩ Alps RK27112 "Blue Velvet" potentiometer
ground plane over the high impedance input area
fenestrated ground plane pads for easier soldering
superimposed power planes around output area
input pads at front and rear
LED power indicator
5×7" (127×178mm) board dimensions
mounting holes for UTS #4 or 3mm screws

Circuit Description

VBE multipliers bias IRFZ24N and IRF9Z34N 18A power MOSFET pairs into Class A operation for low distortion by establishing a constant voltage drop across the gates, which determines the quiescent current. 1µF film capacitors across the  VBE multipliers help stabilize the voltage drop and lower impedance at high frequencies. FET cascode current sources bias the opamps into Class A operation and set the drive current high enough to overcome the reactance of the MOSFET gates. 220pF capacitors between gate and source of the N channel MOSFETs compensate for the difference in CISS between N and P channel MOSFETs to provide symmetrical bandwidth rolloff.

3 amplifier channels (left, right, and ground) use the same output stage and noninverting opamp topology. The ground channel sources and sinks the return current from both transducers which would otherwise have been dumped into signal ground or power supply ground. This shifts responsibility for the high current reactive load of the headphones from signal ground to the supply rails of the output stage, thus removing the primary source of signal ground contamination. The transducers are driven by symmetrical output stages with equal impedance and transfer characteristics on both sides, rather than an output stage on one side and the large capacitor bank of the power supply ground on the other. This results in lower output impedance and greater linearity.

Bass Boost

[bass boost shelving filter]

The bass boost circuit is a 6dB/octave low pass shelving filter. Bass response increases from the cutoff frequency down to the shelving frequency and levels off below the shelving frequency. Increasing R4 decreases the cutoff frequency and increases amp gain. Increasing Rbb decreases the shelving frequency and increases bass boost gain. Increasing Cbb decreases both cutoff and shelving frequencies. The graph shows Rbb = (46.6k, 30k, 18.3k, 10k, 4.1k, 0Ω).

Av = gain with no bass boost; Rbb = 0Ω
Abb = gain of bass boost; XCbb >> Rbb; does not include Av
ƒs = shelving frequency; 3dB below Abb
ƒc = corner frequency; 3dB above Av
ƒo = half gain frequency; Abb/2; used when Abb < 6dB

Av = R4/R3+1
Abb = Rbb/(R3+R4)+1
ƒs =  Abb/(2πRbbCbb√(Abb2-2))
ƒc = √(Abb2-2)/(2πRbbCbb)
ƒo = √Abb/(2πRbbCbb)

for R3 = 1kΩ, R4 = 10kΩ, Rbb = 33kΩ, Cbb = .22µF
Av = 11 (20.8dB), Abb = 4 (12dB), ƒs = 23.4Hz, ƒc = 82Hz

for R3 = 5kΩ, R4 = 5kΩ, Rbb = 30kΩ, Cbb = .22µF
Av = 2 (6dB), Abb = 4 (12dB), ƒs = 25.8Hz, ƒc = 90.2Hz

Bass Boost Calculator

R3 = kΩ, R4 = kΩ, Rbb = kΩ, Cbb = µF
